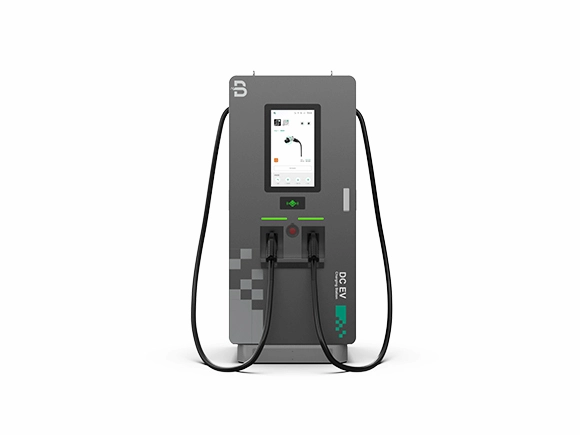

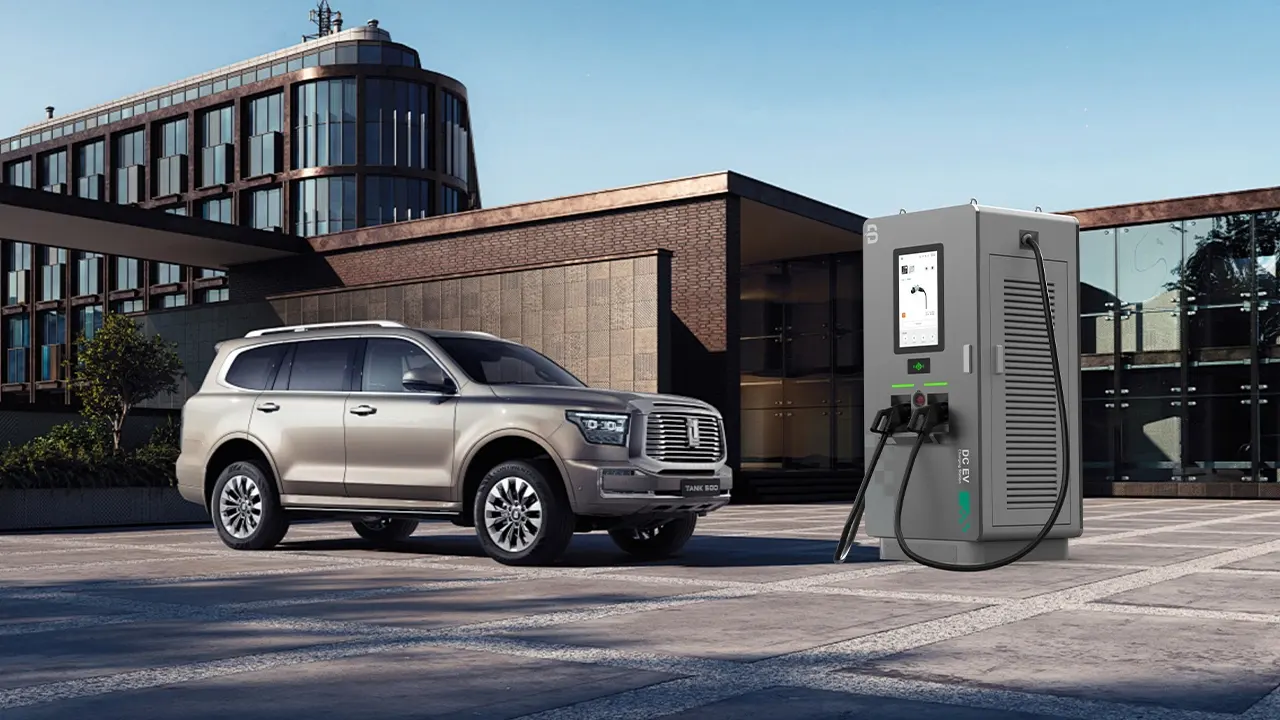

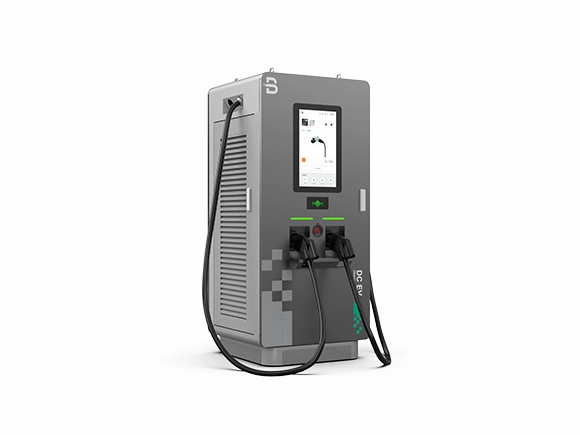

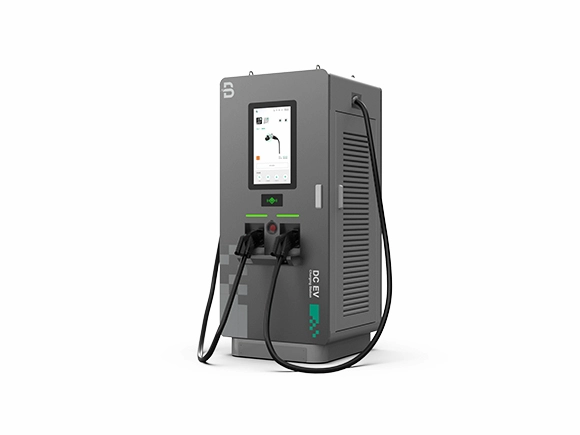

2 Guns DC 60kW-240kW BENY EV Charging Station Fast Charging
To safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way. DLB (Dynamic Load Balancing) is available in the BENY BCP series AC EV Charger for home use, when the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load.
Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor. If the user uses an EV charger equipped with PEN protection, its internal design has a contactor to cut off the ground, once the PEN line is cut off, the contactor KM1 and KM2 are immediately and automatically disconnected, there is only a weak leakage current between CP and PE to L line, its current value is less than 1mA, which is the smallest perceived leakage current of the human body, people can disengage themselves, no safety risks.
BENY EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection: 1.One to one binding EV charger by resetting the password, prevent the EV charger being stolen 2.View charging data and status 3.Set up various charging configurations, charging current, DLB mode, etc 4.Scheduled charging 5.Firmware update
Please fill out the inquiry form. Our team will be in touch with you asap.
The signature LED ring provides users with a clear indication of the charging session status.
Built-in protections prevent overcurrent and AC/DC leakage and make sure the charging environment is safe for the building and the vehicle.
The integrated kWh meter provides you with accurate measurements of the energy being used for EV charging.
Receive automatic firmware updates and remote maintenance via EVBox BusinessLine's Wi-Fi and cellular connection.

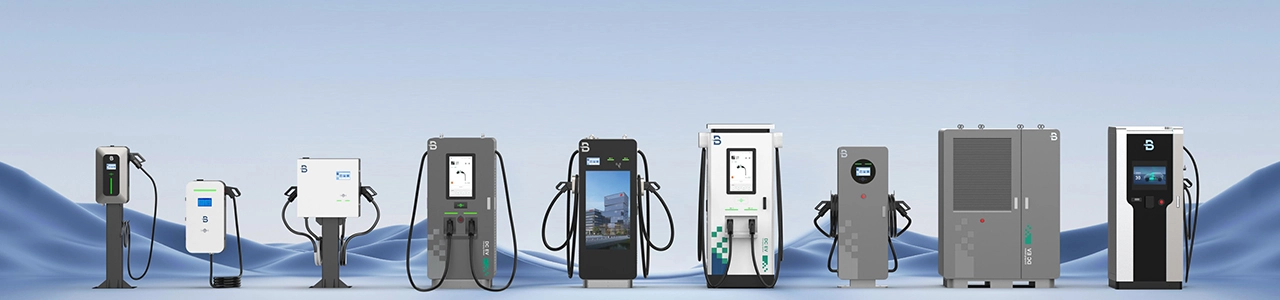

Add customized branding to highlight your business's commitment to electric mobility and increase your brand recognition.
EVBox BusinessLine can deliver up to 22 kW per connector to every electric car equipped with a Type 2 plug, or up to 7.4 kW for electric cars with a Type 1/SAE J1772 plug.
| Models | BDC150-D | BDC180-D | BDC240-D | |
|---|---|---|---|---|
| item |  | | | |
| Structure Description | ||||
| Shell material | sheet meal | |||
| Dimension | 800*800*1800(L*W*T) | |||
| Weight | ≤500kG | |||
| Installation Method | Floor-stand type | |||
| Cable routing | Bottom inlet wiring,up outlet wiring | |||
| Cable length | 5 M | |||
| Charging outlets | Double(CCS1+CCS1) Double (CCS1+CHADEMO) Double(CCS2+GBT) Double(CHADEMO+CHADEMO) | Double(CCS2+CCS2) Double (CCS2+CHADEMO) Double(CHADEMO+GBT) | Double(CCS1+CCS2) Double(CCS1+GBT) Double(GBT+GBT) | |
| Connectivity authorization | RFID, App | |||
| Screen | 9.1inch LCD screen/LED light | |||
| Electrical Specification | ||||
| AC input voltage | AC380V±15% ,3P+N+PEAC | |||
| input frequency | 50Hz/60Hz | |||
| Consumption | ≤24W | |||
| Rated power | 150kW | 180kW | 240kW | |
| Output voltage range | CCS1/CCS2/GBT: 150Vdc –1000Vdc;CHADEMO: 150Vdc –500Vdc | |||
| Output current | CCS1/CCS2/GBT:0~250A;CHADEMO:0~125A | |||
| Efficiency | ≥95% | |||
| Power factor | ≥0.99(load:100%) | |||
| Functionate design | ||||
| User Interface | Emergency Stop Button,LED Indicator,Card Swiping,Touch Screen | |||
| Charging stands | IEC 61851-21-2:2021; IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019; EN 61851-23:2014; EN 61851-24:2014 | |||
If you want to install residential electric vehicle chargepoints, our specialist team can help you every step of the way.
